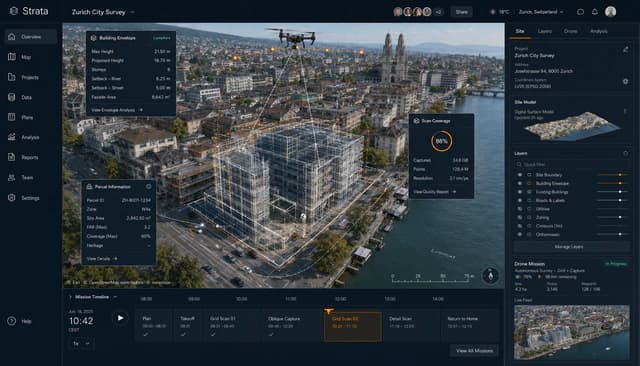

Desktop Site Survey Overview — A native macOS planning workspace showing Zurich riverfront context, live drone scan coverage, building envelope compliance, parcel metrics, captured assets, and ArcGIS 3D site intelligence.

1/9

Drone-Based Site Intelligence

Zurich City Survey

Native Apple GIS app for Zurich linking drone missions, ArcGIS 3D maps, CAD envelopes, compliance, and scan quality.

Year

2025

Duration

6 months

Location

Zurich, Switzerland

Surfaces

Stack

Architecture

GCPPostgreSQL with PostGISAutodesk Platform ServicesDJI Mobile SDKRTK/PPK drone telemetry pipeline

Mapping

ArcGIS Maps SDK for SwiftArcGIS Scene LayersArcGIS 3D Object Scene LayersArcGIS offline map areasSwiss LV95 coordinate workflowsSwiss cadastral parcelsTerrain, zoning, utility, and orthomosaic layers

Code

SwiftSwiftUIUIKitAppKitMapKit interoperabilityRealityKitSceneKitMetal

OpenAI Responses APIGeminiDrone mission analysis agentsPlanning compliance summariesCAD metadata extractionScan quality interpretationSite insight generationNatural-language GIS query support

Conceptual application work, created with the listed platforms and APIs and tested across the indicated surfaces.

Details

Native Apple GIS product delivered across macOS, iPadOS, and iOS for drone-supported site survey and planning review in Zurich

Used ArcGIS Maps SDK for Swift as the single mapping platform for 3D scenes, scene layers, offline areas, terrain, parcel context, and operational overlays

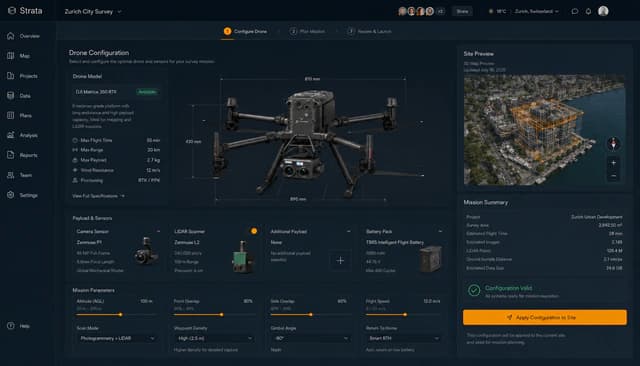

Connected drone mission planning, live grid scans, RTK/PPK telemetry, photo capture, LiDAR readiness, waypoints, battery status, and scan coverage in one shared workflow

Integrated AutoCAD-derived building envelopes, architectural drawings, sections, elevations, floor plates, and zoning geometry through Autodesk Platform Services and preprocessing pipelines

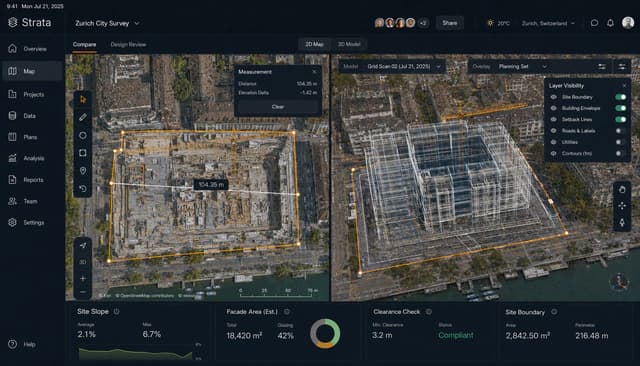

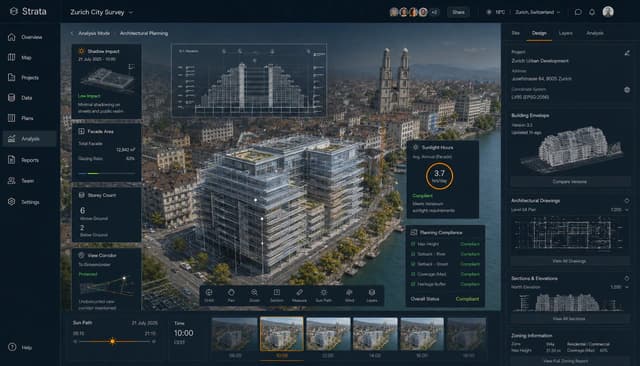

Supported compliance checks for maximum height, setbacks, facade area, view corridors, sunlight hours, shadow impact, clearance, site boundary, and zoning constraints

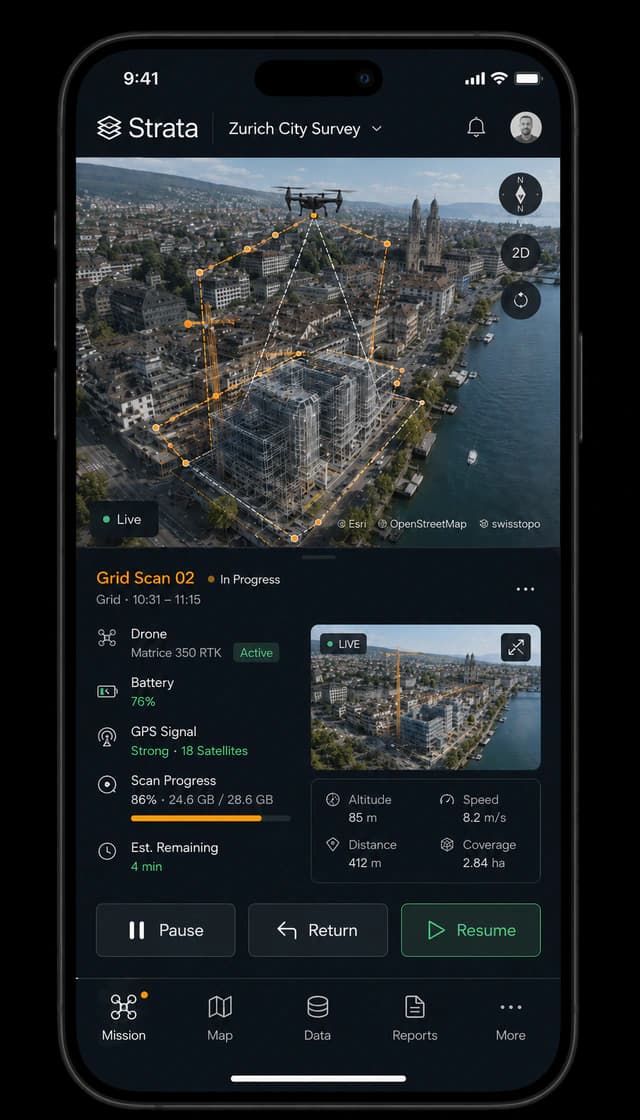

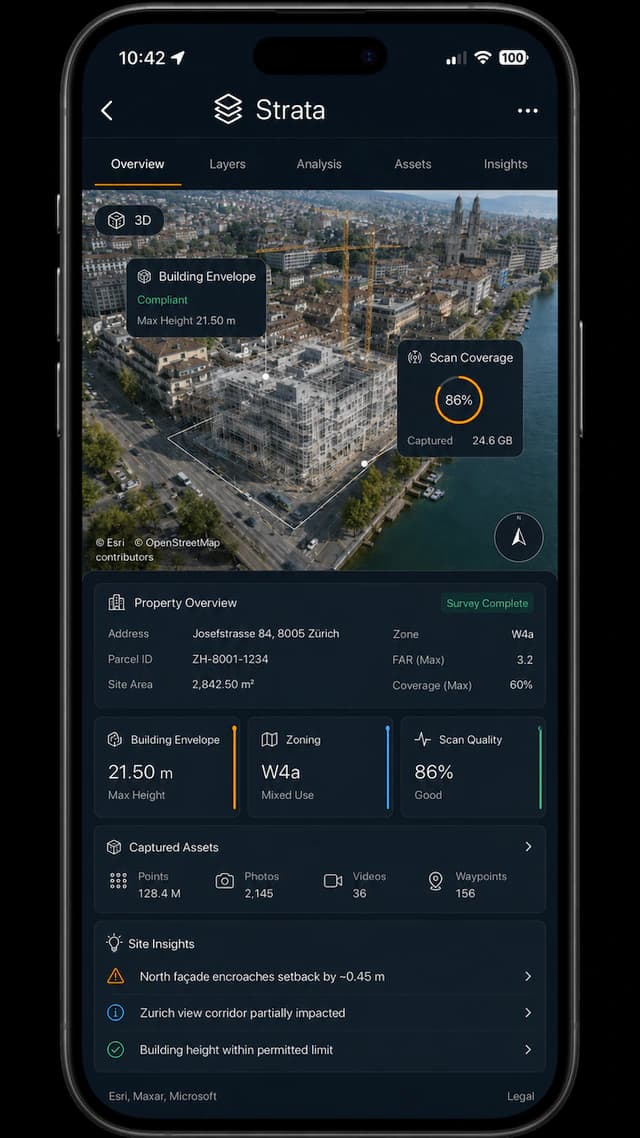

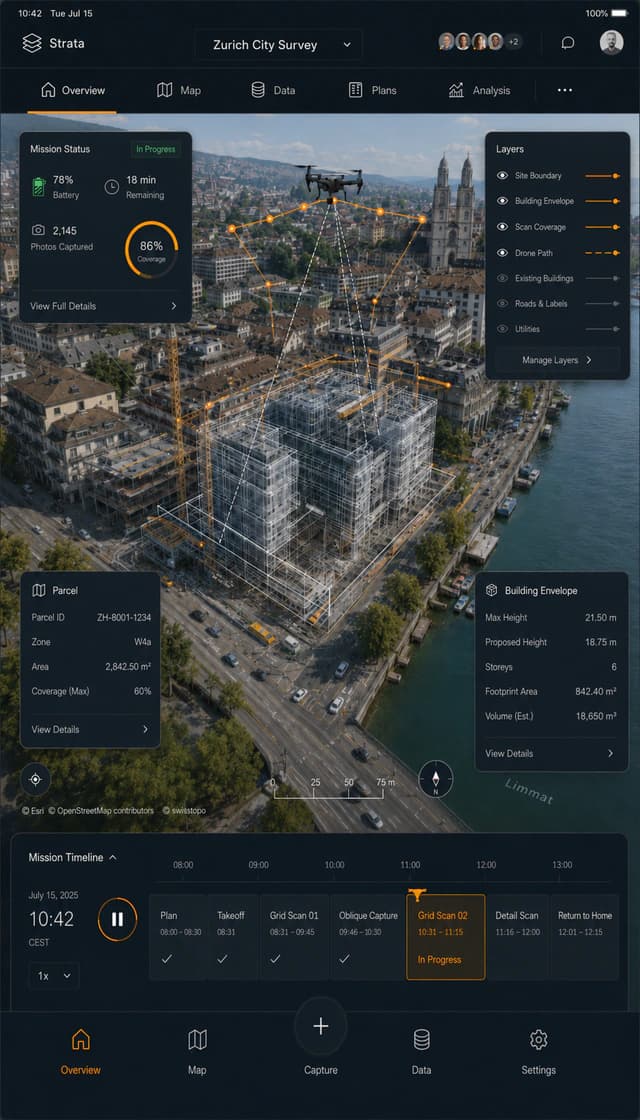

Presented desktop workflows for detailed planning review, iPad workflows for mission monitoring and site meetings, and iPhone workflows for field operations and property insights

Stored captured assets, orthomosaic outputs, 3D model versions, mission timelines, annotations, site metadata, and planning reports in cloud-backed project records

Used AI-assisted interpretation to summarize drone scan quality, explain planning warnings, detect model conflicts, compare survey states, and generate concise stakeholder notes
